AMD Radeon™ RX 7900 XTX AQUA 24GB OC

RX7900XTX AQ 24GO

  • Clock: GPU / Memory
    Boost Clock*: Up to 2680 MHz / 20 Gbps
    (update new vBIOS for faster Boost Clock)
    Game Clock**: 2510 MHz / 20 Gbps
  • Key Specifications
    AMD Radeon™ RX 7900 XTX GPU
    24GB GDDR6 on 384-Bit Memory Bus
    96 AMD RDNA™ 3 Compute Units (With Rt+Ai Accelerators)
    96MB AMD Infinity Cache™ Technology
    PCI    ® Express 4.0 Support
    3 x 8-pin Power Connectors
    3 x DisplayPort™ 2.1 / 1 x HDMI™ 2.1

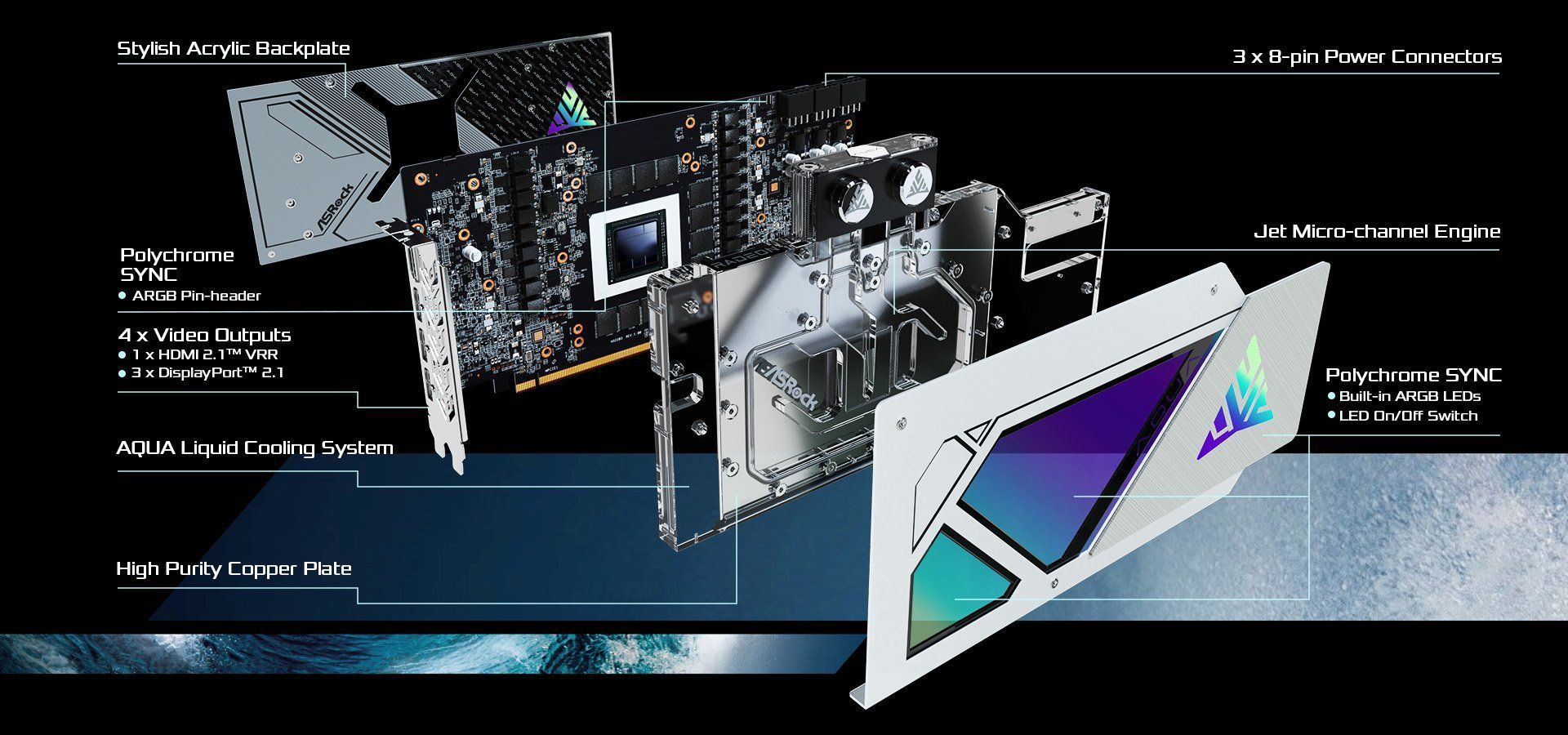

  • Key Features
    AQUA Liquid Cooling System
    High Purity Copper Plate
    Jet Microchannel Engine
    Stylish Acrylic Backplate
    Polychrome SYNC
    LED On/Off Switch
    ARGB Pin-header
    22 Power Phase Design
    Super Alloy Graphics Card



Specification :

Graphics Engine - AMD Radeon™ RX 7900 XTX
Bus Standard - PCI® Express 4.0 x16
DirectX - 12 Ultimate
OpenGL - 4.6
Memory - GDDR6 24GB
Engine Clock

- Boost Clock * : Up to 2680 MHz

- Game Clock ** : 2510 MHz

* Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
Stream Processors - 6144
Compute Units - 96
Memory Clock - 20Gbps
Memory Interface - 384-bit
Resolution - Digital Max Resolution: 7680x4320
Interface

- 3 x DisplayPort™ 2.1 *

- 1 x HDMI™ 2.1

* DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 3 ports simultaneously
HDCP - Yes
Multi-view - 4
Recommended PSU - 1000W
Power Connector - 3 x 8-pin
Accessories - 1 x Quick Installation Guide
Dimensions - 275 X 157 X 22mm
Net Weight - 1450 g

Overview

GPU Section 1
GPU Section 2

Break the Performance Limit of Graphic Card

New BIOS Updated

The new vBIOS (RX7900XTX_24GB_Extreme_OC) of Radeon RX 7900 XTX AQUA 24GB OC is equipped with better settings to make graphic card break performance limit. Compared with AMD Radeon RX 7900 XTX reference card, the new vBIOS settings have approximate 13.5% performance enhancement and significantly improve user gaming experience.

3DMark Time Spy Score
AMD Radeon RX 7900 XTX AQUA 24GB OC 13.5% Higher
32000
AMD Radeon RX 7900 XTX Ref. Card
28600

Note:

  1. The testing result is based on AMD Radeon driver 23.5.1 (release date 2023/5/25)
  2. The testing data above is for reference only. It depends on power supply efficiency and different platforms may lead to significant difference.
  3. Recommend to use at least 1000 watt PSU with 80 plus gold certification.
